Riser Door- 2 Hour Fire Rated & Smoke Tested 600 x 900

The 2 Hour Fire Rated & Smoke Tested Wall Access Panel is designed to provide secure access to concealed wall services while maintaining both fire and smoke protection. Featuring a Rapid Fit Hinge System, metal-faced door, 25 mm picture frame, and 3-point locking system, it offers quick installation, dependable performance, and a durable RAL 9010 (30% Gloss) powder-coated finish for commercial and residential wall applications.
R57/120S/MD/PF/L12A
£275.99
  • 2-hour fire-rated and smoke tested wall access panel for fire-resistant wall applications
  • Independently fire tested to BS EN 1634-1:2014 + A1:2018
  • Smoke tested to BS EN 1634-3:2004 to help restrict the passage of smoke
  • Durable metal-faced door for strength and long-lasting performance
  • Rapid Fit Hinge System for quick and straightforward installation
  • 25 mm wide picture frame for a clean, professional finish

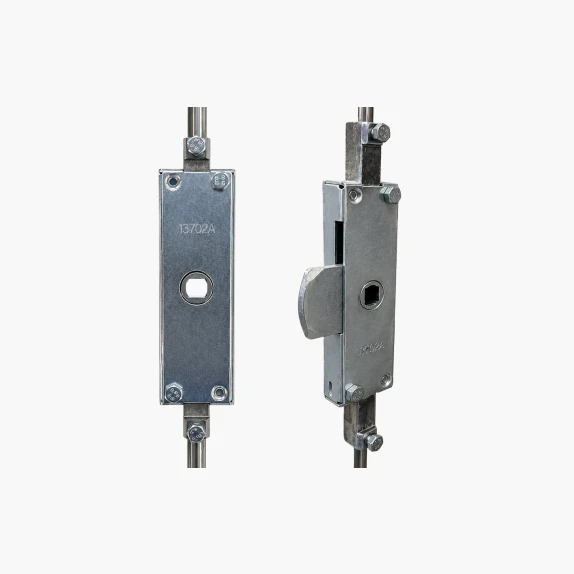

  • Secure 3-point locking system for enhanced safety and security
  • Finished in RAL 9010 (30% Gloss) powder coating
  • Supplied as a single door unit
  • Designed specifically for wall installations
  • The first dimension specified represents the hinge side
  • Fire tested up to 1900 × 643 mm (Fire Test Report No. 527424)
  • Smoke tested under Report No. 542222-03
  • Larger sizes are manufactured using the same construction specification as the tested panel
The 2 Hour Fire Rated & Smoke Tested Wall Access Panel is engineered to provide secure maintenance access while preserving both fire resistance and smoke control within wall systems. Featuring a durable metal-faced door, Rapid Fit Hinge System, 25 mm picture frame, and secure 3-point locking mechanism, it offers dependable performance in demanding environments. Independently tested to BS EN 1634-1:2014 + A1:2018 for up to 120 minutes of fire resistance and BS EN 1634-3:2004 for smoke leakage performance, this fire-rated and smoke-tested wall access panel is an ideal solution for commercial, residential, healthcare, education, and industrial buildings where compliant fire and smoke protection is essential.

Product Type Wall Access Panel
Fire Rating 2 Hour Fire Rated
Smoke Rating Smoke Tested
Application Wall
Door Type Single Door
Door Material Metal Faced Door
Locking System 3 Point Locking System
Finish Powder Coated, RAL 9010 (30% Gloss)
