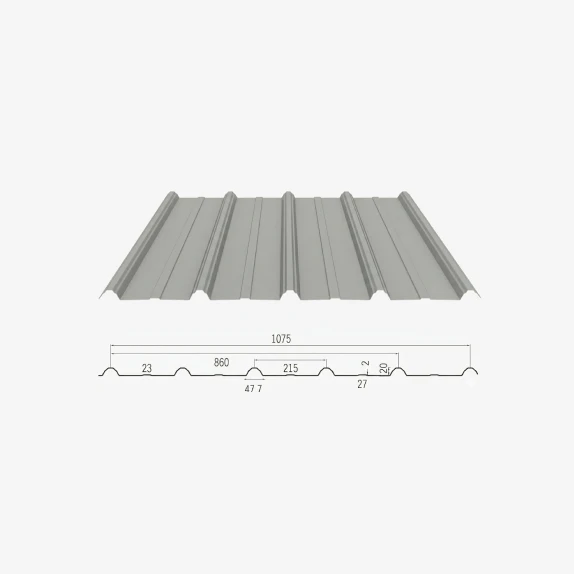

The YX20-215-860(1075) is a high-profile corrugated steel sheet designed for maximum structural performance. With a significant rib height of 20mm and a wide pitch of 215mm, this profile is built to handle higher load requirements than standard lining sheets. It is available in multiple thicknesses (0.5mm to 0.8mm) and two effective coverage widths to accommodate various architectural scales.
| Expanded Width | 1000/1200mm |
| Core Thickness | Not applicable (Single Sheet) |
| Effective Width | 860/1075mm |
| ● Coating Types | Typically Prepainted or Galvanized |
| ● Panel Length | Customisable |
| ● Steel Thickness | 0.5 / 0.6 / 0.80mm |
Manufactured using industry-grade materials for strength, durability, and long-term reliability.
Produced under strict quality control to ensure accurate dimensions and consistent finishes.
Supplied in large volumes with export-ready packing and reliable delivery for industrial projects.
Suitable for roofing, cladding, and structural applications across diverse construction environments.
