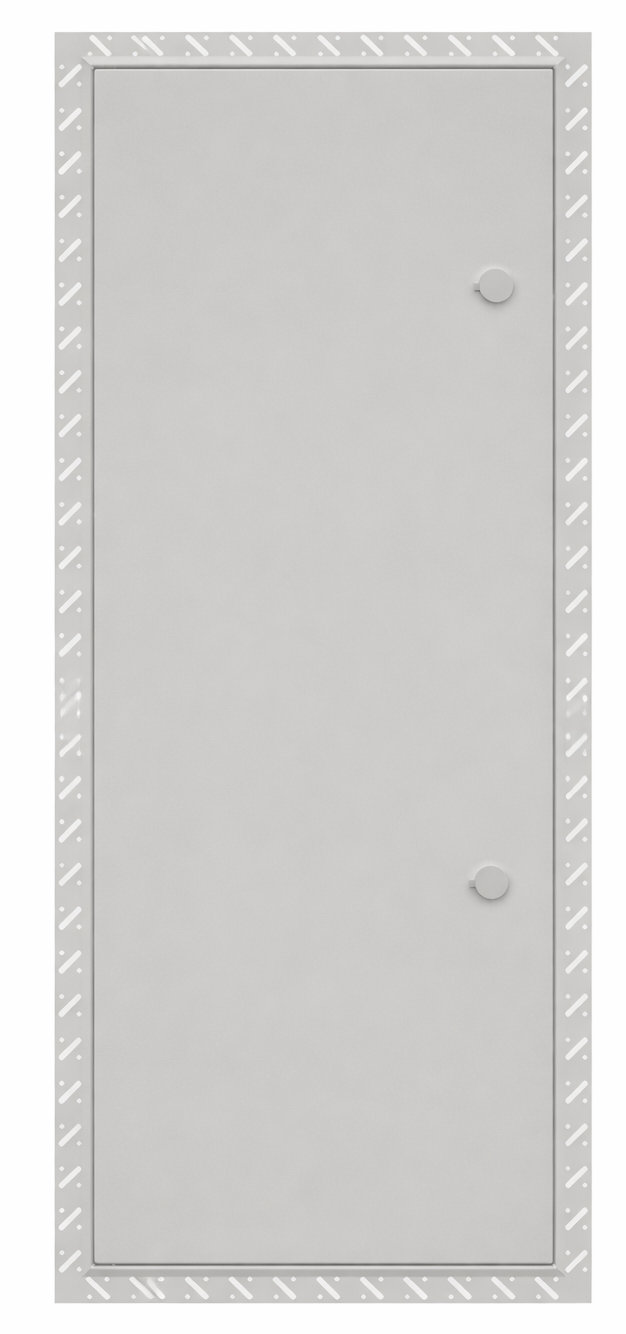

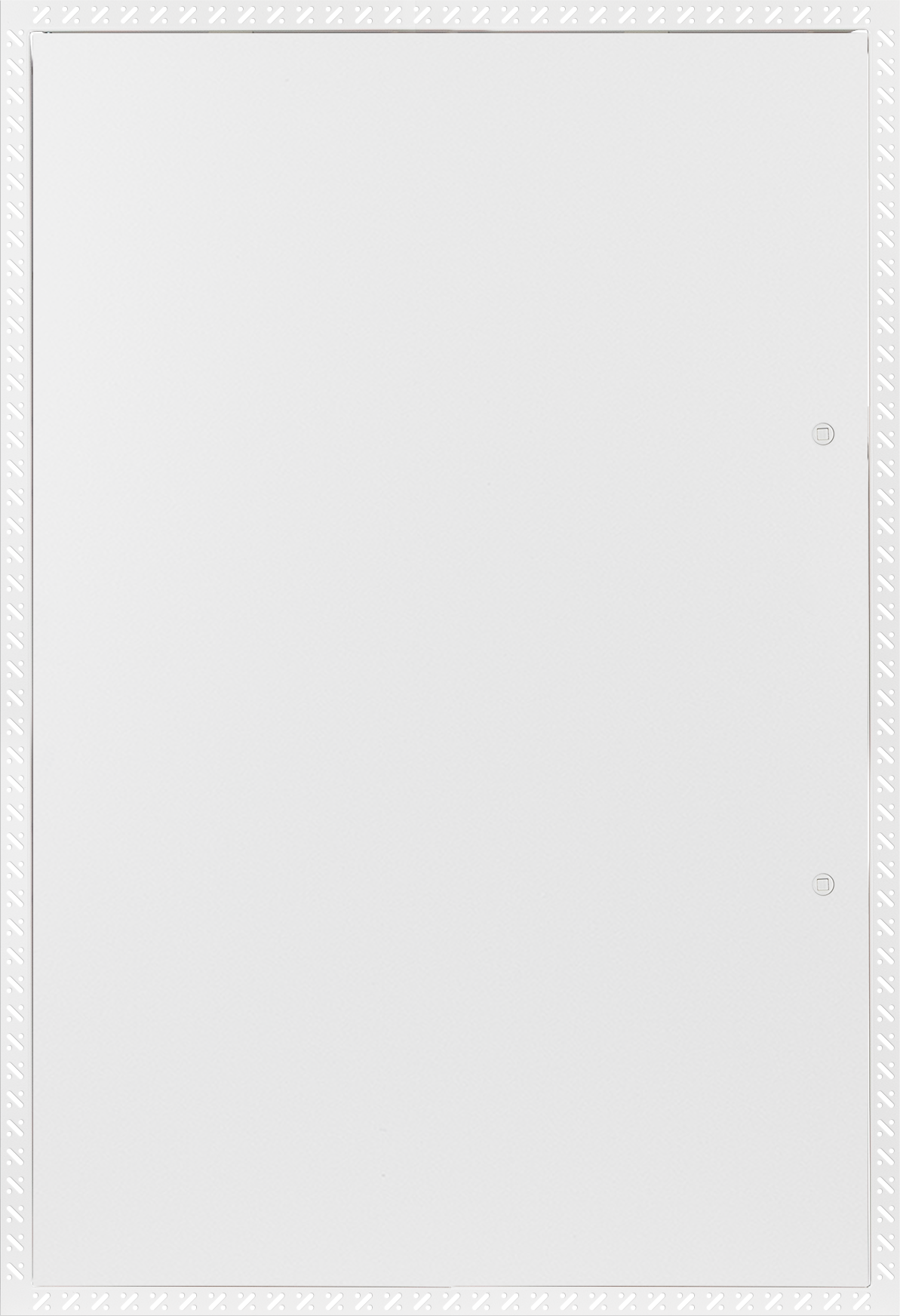

Metal Access Panel- 1 Hour Fire Rated- Beaded Frame

The Metal Faced Dual Purpose Access Panel is a 1-hour fire-rated inspection panel suitable for both walls and ceilings. Featuring a durable metal door, beaded frame, patented FlipFix fitting device, and flush lock, it provides fast installation and secure access. Finished in Powder Coated RAL 9010 (30% Gloss) and tested to EN 1634-1:2014 and BS EN 1634-1:2014 fire standards.

The Metal Faced Dual Purpose Fire Rated Access Panel is designed for wall and ceiling applications, providing secure access to concealed building services while maintaining fire-rated performance.
Features a durable metal door and beaded frame for a strong, professional finish.
Supplied with the patented FlipFix® fitting device for quick and secure installation without the need for additional fixing frames.
Includes the patented FlipFix® Flush Lock for a discreet, flush appearance and easy access for inspection and maintenance.
Provides 1-hour fire integrity and is independently tested to EN 1634-1:2014 and BS EN 1634-1:2014 standards.
Finished with a durable RAL 9010 (30% Gloss) powder-coated coating for excellent durability and a clean modern appearance.
Suitable for a wide range of applications including commercial, residential, healthcare, educational and industrial buildings.
Designed for inspection purposes only and must be installed using the supplied FlipFix® clamps to maintain certified fire performance.
The first dimension specified represents the hinge side of the panel.

The Metal Faced Dual Purpose Fire Rated Access Panel offers a reliable and versatile access solution for fire-rated wall and ceiling installations. Combining robust metal construction with the patented FlipFix® installation system and flush locking mechanism, it provides fast fitting, secure access and a neat finish while maintaining certified fire integrity.

Product Specifications

Product Type

Metal Faced Dual Purpose Access Panel

Fire Rating

1 Hour Fire Rated

Door Material

Steel Metal Door

Frame Type

Beaded Frame

Installation

Wall & Ceiling

Lock Type

Patented FlipFix Flush Lock

Fixing Method

Patented FlipFix Fitting Device

Finish

Powder Coated RAL 9010 (30% Gloss)
