HIGH PERFORMANCE PANEL SOLUTIONS

Sound

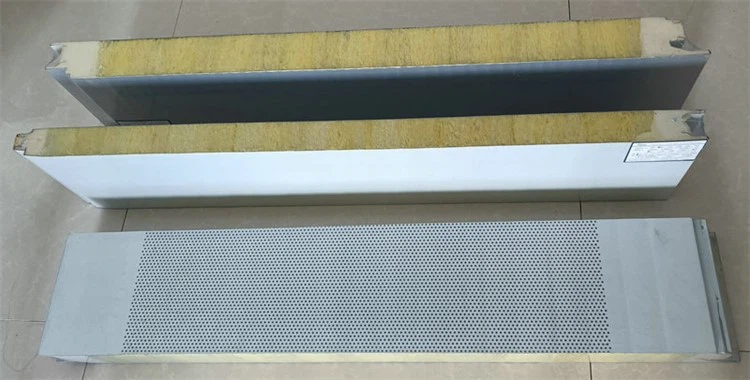

Soundproof glass wool sandwich panel typically consists of two panels and a fiberglass core layer in the middle. The panel material is usually pre-coated steel sheet. The fiberglass core layer is made of specially treated fiberglass, which can be in the form of flocculent, board-like, or felt-like structures.
Core Material: Rockwool + Glasswool
Installation: Vertical or Horizontal
Fireproof Grade: A
Colour: Customisable

Soundproof glass wool sandwich panels are mainly composed of an outer panel + fiberglass core (thickness 50-100mm) + an outer panel (metal/composite surface optional);The use of high-temperature weather resistant sealant and riveting structure ensures that there will be no molten droplets between the board and the outer layer during a fire.

Introduction of core material (glass wool):
glass wool board is broken glass, quartz sand, dolomite, soda ash, borax and other raw materials melted into glass, and then fibrosized, through spraying special thermosetting adhesive pressing to form a panel-like insulation material, the soundproof glass wool sandwich panel is applied to the building insulation system, with good fire retardant, thermal insulation and energy saving and sound insulation and noise reduction performance.

Soundproof sandwich panel with high acoustic insulation performance, robust structural strength, effective thermal insulation and durable construction for quiet, energy‑efficient building applications.

Download the full colour chart to explore available standard colors and surface finishes for this product.
Custom color options and special coatings can be provided on request to meet specific project requirements.

Panel Thickness 50, 75, 100 mm
Effective Width 1m (Standard)
Steel Sheet (Outer) Colour Galvanized Sheet
Steel Sheet (Inner) Colour Galvanized Sheet (with holes) + Non-woven fabric
Surface Profile Dot effect (3mm Hole / 6mm Distance)
Core Density 64 kg/m³
Panel Length Up to 11.8 m (Customizable)
Coating Types PE / SMP / HDP / PVDF
Steel Thickness 0.4 – 0.8 mm

Safety & Performance

High-Quality Materials

Manufactured using industry-grade materials for strength, durability, and long-term reliability.

Energy Efficient

Produced under strict quality control to ensure accurate dimensions and consistent finishes.

Project-Ready Supply

Supplied in large volumes with export-ready packing and reliable delivery for industrial projects.

Versatile Applications

Suitable for roofing, cladding, and structural applications across diverse construction environments.

Warehouses

Cold Storage

Industrial Units

Agricultural Buildings
